Why Your Furnace Circuit Board Matters More Than You Think
Furnace circuit board repair can save you hundreds of dollars compared to calling a technician, but only if you know what you're doing. When your furnace won't start, cycles on and off randomly, or the blower runs constantly, the culprit is often a failed control board.
Quick Answer for Furnace Circuit Board Issues:
- Turn off power at the breaker and gas valve
- Check for visual damage - burn marks, cracked solder joints, or corrosion
- Look for diagnostic LED codes on the board itself
- Test with a multimeter if you have electrical experience
- Replace the board if faulty (takes 20-30 minutes for most homeowners)
- Call a professional if you're uncomfortable with electrical work
Your furnace control board is the brain of your heating system, controlling everything from the igniter to the blower motor. When it fails, your whole house can go cold, which is especially frustrating during a Kansas winter.
The good news? A replacement board costs just $50-$300 in parts. Professional installation runs $300-$650 total. But if you're handy with basic tools and comfortable around electricity, you might tackle this repair yourself.
Safety warning: Working with electrical components and gas appliances carries real risks. If you have any doubts about your skills, don't risk your family's safety trying to save money.
What is a Furnace Control Board and What Does It Do?
Your furnace control board is the brain of your heating system. This electronic board tells every part of your furnace when to kick into action.

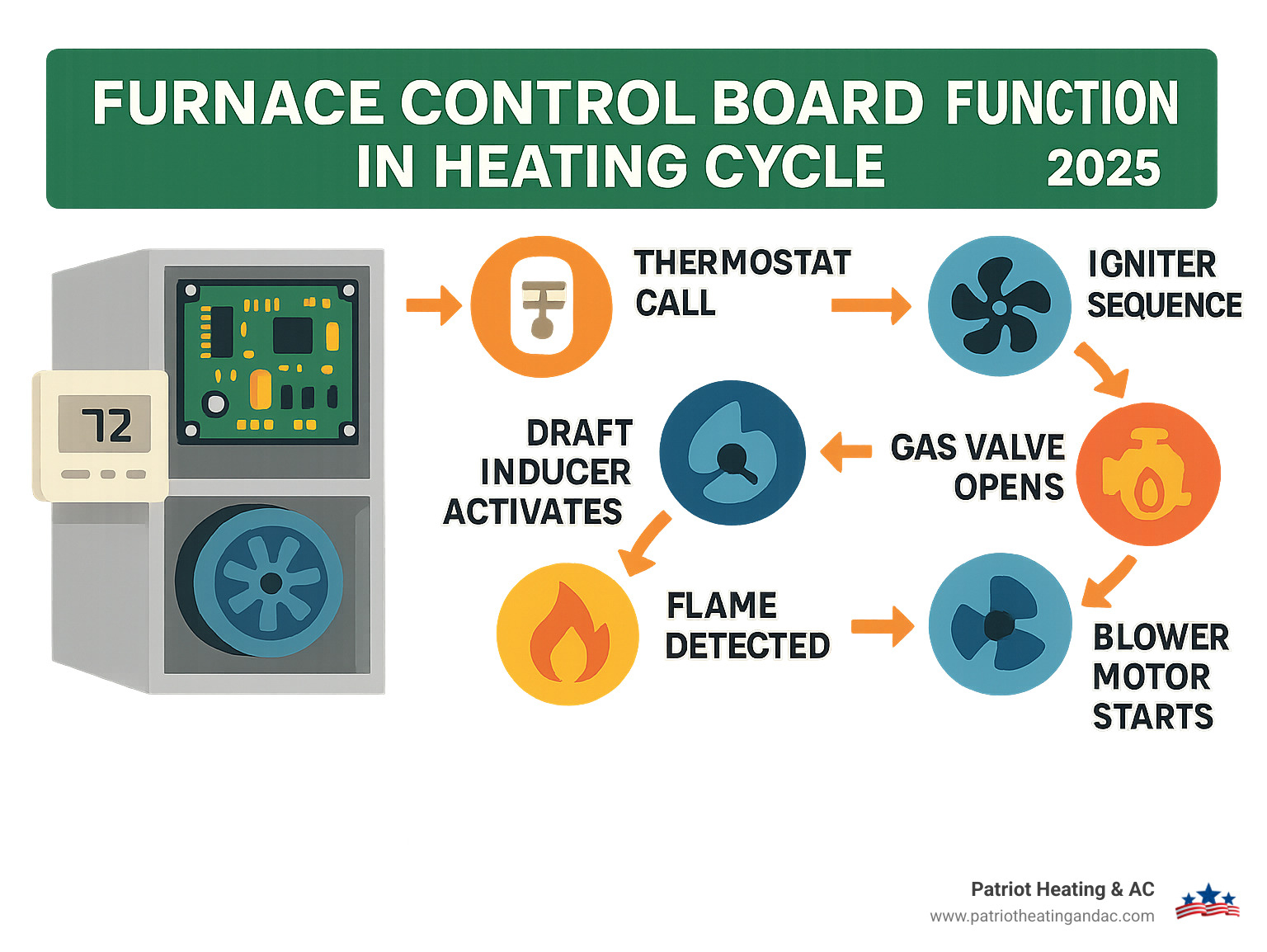

When you adjust the thermostat, the control board receives the signal and begins the heating sequence—a carefully timed process that brings warmth to your home.
First, the board starts the draft inducer fan to clear out any lingering gases. It then signals the igniter to heat up. Once ready, it opens the gas valve, allowing fuel to flow to the burners. After ignition, the board confirms the flame is stable and then activates the blower motor to circulate warm air.
Crucially, the control board also monitors safety sensors. If it detects a problem, like a flame failure or blocked airflow, it will shut the system down immediately to ensure safety.
Without this central command center, your furnace would just be a collection of parts. It's the difference between a functional heating system and an expensive metal box in your basement.
If your system keeps tripping breakers, that could signal trouble with your control board or related electrical issues. Check out our guide on Why Your HVAC Trips the Circuit Breaker for more details.
Common Causes and Signs of Furnace Circuit Board Failure
When your furnace acts up, the control board is a common culprit.
The most obvious sign is no heat at all. You might also experience intermittent operation, where heat comes and goes unpredictably.
Another clear indicator is a blower that runs constantly. If the fan won't turn off even when not heating, a relay on the control board is likely stuck in the "on" position.

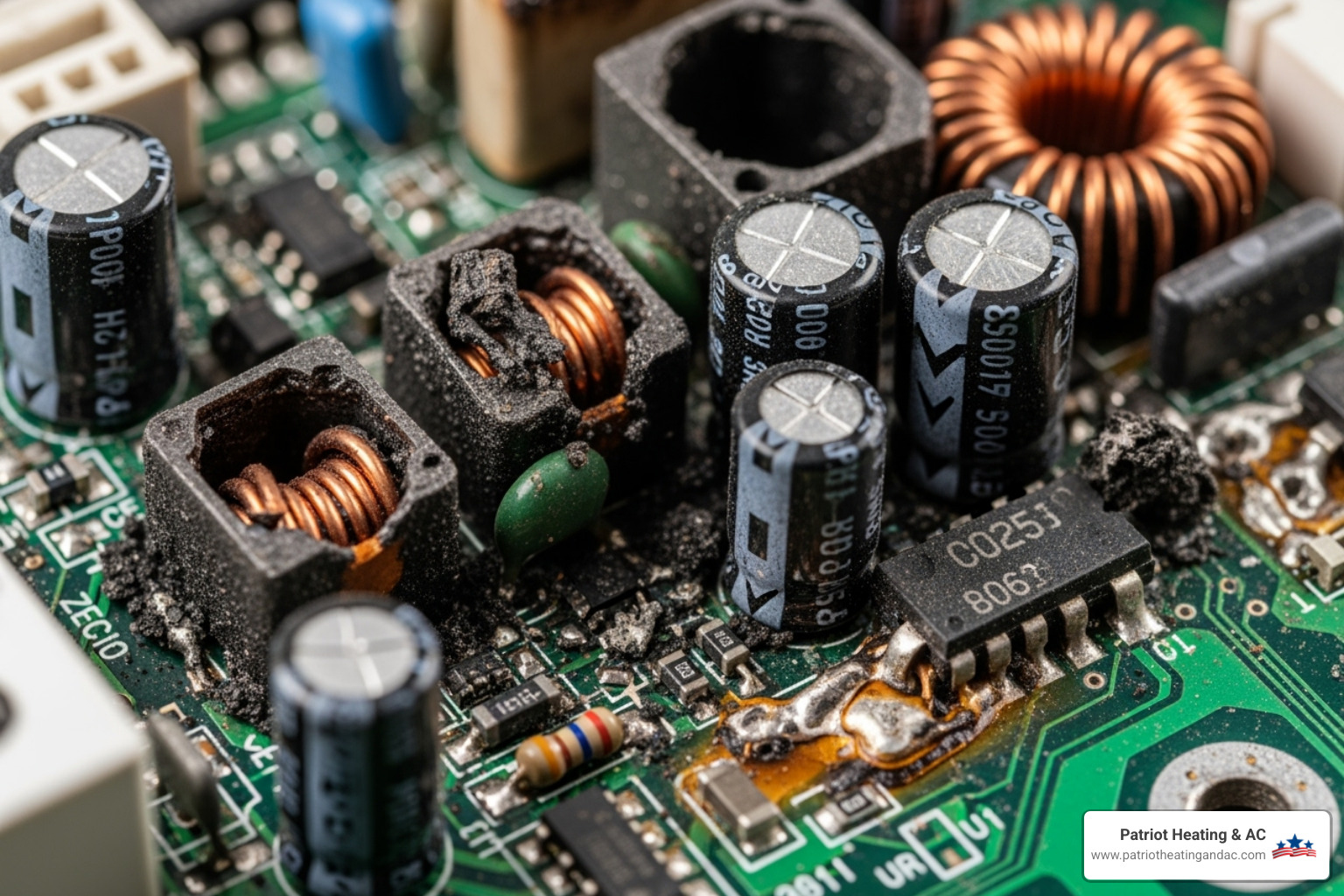

A smell of burning plastic or visible burn marks, cracked components, or discoloration on the board itself are definitive signs of failure.
Modern furnaces use flashing LED codes to signal problems. These blinking lights correspond to specific error codes, which you can find on a chart inside the furnace access panel.
What causes these failures? Power surges are a primary cause, frying delicate circuits. Old age is another factor; after 10-15 years, components simply wear out. Other causes include moisture damage from leaks, loose wiring that creates hot spots, and stuck relays, which can happen after a long period of inactivity.
If any of this sounds familiar, don't ignore it. A small problem today can turn into a big, expensive headache tomorrow. For more warning signs to watch for, take a look at our guide on Signs You Need a Heating Repair.
How to Diagnose a Faulty Furnace Control Board
When your furnace starts acting up, diagnosing the control board doesn't require a degree in electrical engineering. But it does require putting safety first - and we can't stress this enough. Working around electricity and gas isn't something to take lightly, so if you feel uncomfortable at any point, there's no shame in calling a professional.
The first step is always turning off the power at your home's electrical panel. Find the circuit breaker dedicated to your furnace and flip it to "off." For gas furnaces, you'll also need to shut off the gas valve - look for the manual shut-off on the gas line leading to your furnace and turn it to the closed position.
Now you can safely access the control board, which is typically tucked away in the lower section of your furnace near the blower motor. You'll need to remove the access panel (keep those screws in a safe spot!). Before touching anything, discharge any residual electricity by touching an unpainted metal part of the furnace frame.

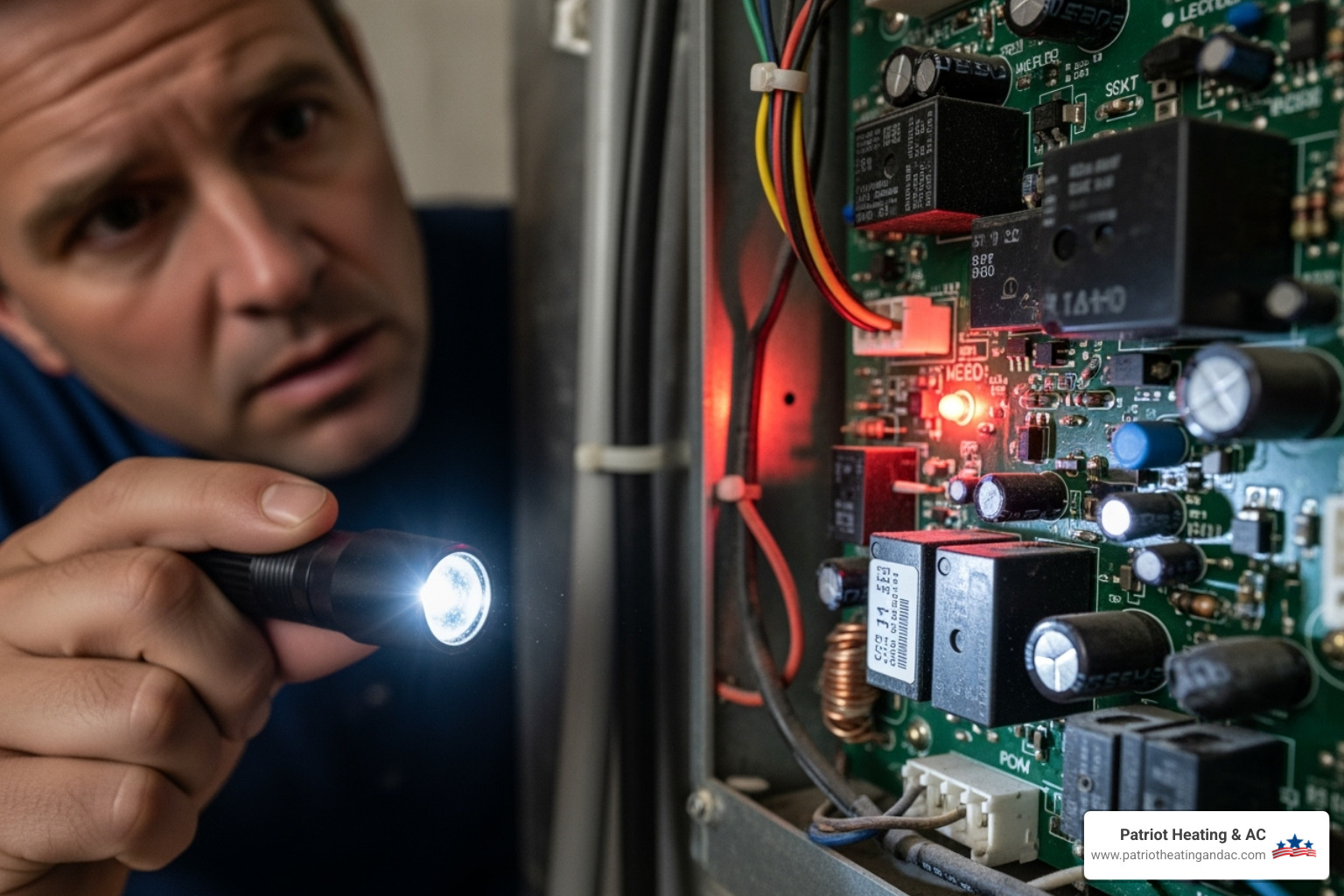

Visual inspection is your first diagnostic tool, and it's surprisingly effective. Look for obvious signs of trouble like burn marks or discoloration around components, especially near relays or resistors. Cracked solder joints can be tricky to spot - they look like tiny hairline fractures where components connect to the board. Corrosion shows up as greenish or whitish buildup, usually indicating moisture problems.
Many modern boards make diagnosis easier with diagnostic lights that flash specific patterns. These LED codes are like your furnace speaking directly to you. Check the error code chart usually printed inside your furnace's access panel or in the owner's manual. A steady flash might mean one thing, while a rapid blink pattern indicates something completely different.
For those comfortable with electrical testing, multimeter testing can confirm your suspicions. You can check if the board is receiving proper voltage or if specific outputs have failed. However, this requires solid electrical knowledge and might involve temporarily restoring power - not something to attempt unless you're truly confident in your skills.
Tools Needed for Diagnosis and Repair
Having the right tools transforms a furnace circuit board repair from a frustrating puzzle into a manageable project. You don't need a professional workshop, but a few essential tools will make your life much easier.
A multimeter is your electrical detective - it tells you what's happening with voltage, continuity, and resistance. Phillips and flathead screwdrivers handle most panel removal and component work, while needle-nose pliers help you grip small wires in tight spaces. Wire strippers come in handy if you need to prepare new connections.
Don't forget about safety and visibility. Protective gloves protect your hands and prevent static discharge that could damage sensitive electronics. Safety glasses are non-negotiable when working with tools. A good flashlight or headlamp illuminates those dark corners where furnaces like to hide their important parts.
If you're considering component-level repairs like replacing individual relays, you'll also need soldering equipment. But for most homeowners, a complete board replacement is the safer, more reliable approach.
A Homeowner's Guide to Furnace Circuit Board Repair and Replacement
You've figured out your control board is the culprit behind your heating woes. Now comes the big decision: should you attempt a furnace circuit board repair yourself, or call in the pros? For most homeowners, replacing the entire board is much more manageable than trying to fix individual components.
The beauty of modern control boards is they're designed to be relatively user-friendly. You don't need an engineering degree – just patience, attention to detail, and a healthy respect for electrical safety.
Your Step-by-Step Replacement Guide:
Start with safety precautions – turn off power at the breaker and shut off the gas valve. We know we sound like a broken record, but these steps could save your life.
Locate the board inside your furnace, usually near the blower motor in the lower section. Remove the access panels carefully and set the screws aside where you won't lose them.

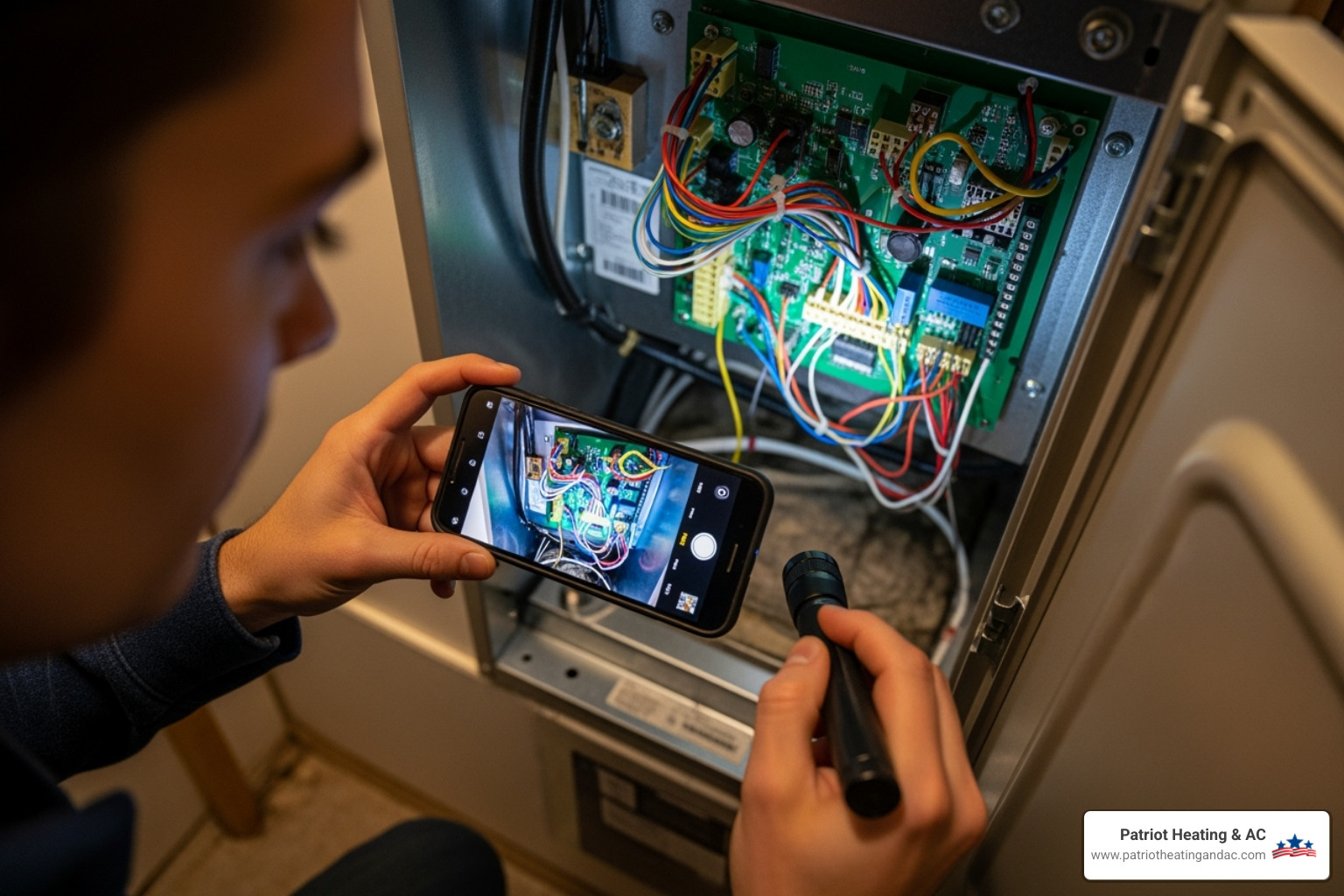

Here's where many DIYers either succeed brilliantly or create a wiring nightmare: documenting the existing wires. Before you touch a single connection, grab your phone and take photos from multiple angles. Shoot a quick video too. Think of it as creating a roadmap for your return journey.
Pro tip: Use masking tape to label each wire as you disconnect it. Write things like "red wire to W terminal" or "blue wire to Y1." Your future self will thank you when you're staring at a handful of colored wires wondering where they all go.
Disconnect the terminals one at a time, immediately connecting each wire to the corresponding spot on your new board. This "one-wire-at-a-time" approach prevents the confusion that leads to service calls at midnight.
Remove the old board by unscrewing it from its mounting bracket. Install the new board in the exact same position and orientation.
Double-check every connection against your photos before you close everything up. A loose wire now could mean no heat later, and nobody wants to tear apart their furnace twice.
Reconnect power and test your work by setting the thermostat to call for heat. Listen for the familiar sounds of your furnace firing up. If everything cycles normally, you've just saved yourself several hundred dollars.
Repairing vs. Replacing Your Board
When your control board fails, you've got two main paths forward. Understanding the pros and cons of each helps you make the right choice for your situation and skill level.
Component-level repair appeals to the tinkerers among us. If you've got advanced soldering skills and can identify exactly which relay or capacitor failed, you might fix the board for just a few dollars in parts. We've seen homeowners successfully replace stuck relays and bring dead boards back to life.
But here's the reality: this approach requires serious electronics knowledge. You need to diagnose the exact problem, source the right replacement part, and execute delicate soldering work without damaging surrounding components. One slip of the soldering iron can turn a simple relay replacement into a complete board replacement.
Full board replacement is the plug-and-play solution most homeowners choose. Modern replacement boards are designed for straightforward installation. You're essentially playing an elaborate matching game – each wire from the old board finds its corresponding home on the new one.
This approach gives you a completely fresh start with updated components. New boards often incorporate design improvements that make them more reliable than the original. Plus, you can usually complete the swap in 20 to 30 minutes once you've got your documentation sorted.
When to call Patriot Heating & AC instead: If the diagnostic codes confuse you, if you're uncomfortable with electricity, or if you find issues beyond just the control board, it's time for professional help. Complex furnace problems sometimes masquerade as simple board failures.
A faulty control board doesn't sentence your furnace to the scrap heap. It's a replaceable component that costs far less than a new system. However, if your furnace keeps breaking down and the repair bills are mounting, you might want to explore Furnace Replacement in Overland Park, KS options instead.
Costs, Risks, and When to Call a Professional
Let's be honest - furnace circuit board repair can save you serious money, but it's not a decision to take lightly. We're talking about working with electricity and natural gas, two things that deserve your complete respect and attention.
Understanding the Real Risks of DIY:
When you're dealing with your furnace's electrical system, the stakes are genuinely high. Electrical shock is always a possibility if you don't properly shut off power or handle wiring incorrectly. We've seen homeowners get nasty jolts because they thought the power was off when it wasn't.
Fire hazards are another serious concern. One loose wire connection or crossed wire can create a short circuit, leading to overheating and potentially a house fire. It's not meant to scare you, but rather to emphasize why proper technique matters so much.
You could also end up causing further damage to your furnace. Connect the wrong wire to the wrong terminal, and you might fry your brand-new control board - or worse, damage other expensive components like your thermostat or blower motor.
Don't forget about warranty issues either. Many furnace manufacturers will void your warranty if they find unauthorized repairs were attempted. Always check your warranty terms before picking up that screwdriver.
If you're working near gas connections, there's also the risk of gas leaks if something gets accidentally loosened. Natural gas leaks are nothing to mess around with.
For a comprehensive look at handling HVAC emergencies, check out our Guide for HVAC System Failures.
The Cost of Furnace Circuit Board Repair: DIY vs. Professional
Here's where the rubber meets the road - what's this going to cost you?
AspectDIY (Parts Only)Professional Service (Parts + Labor)Part Cost$50 - $300Included in totalLabor Cost$0$250 - $350Total Average Cost$50 - $300$300 - $650Time20 - 30 minutes20 - 30 minutes (plus diagnostic)RiskHighLowSkill LevelModerate to HighProfessional
What Goes Into Professional Pricing:
HVAC technicians typically charge between $75 and $150 per hour for their expertise. While the actual board replacement might only take 20-30 minutes, you're also paying for their diagnostic skills, proper tools, and the peace of mind that comes with professional installation.
If your furnace decides to quit during a winter storm (because that's always when these things happen, right?), emergency service calls can cost more. But sometimes you need heat restored quickly, especially when it's freezing outside and you have kids or elderly family members in the house.
That's exactly why we offer 24/7 Furnace Repair in Overland Park, KS - because furnaces don't respect business hours.
Finding a Qualified HVAC Technician
So when should you put down the tools and pick up the phone instead?
Call a professional when you're unsure about the diagnosis. If you've gone through all the troubleshooting steps and those diagnostic lights are still flashing codes you can't decipher, it's time for expert help. A qualified technician has the voltage meters and experience needed for definitive diagnosis.
If you feel even slightly uncomfortable working with electricity or gas, don't push through that discomfort. Your safety is worth more than any amount of money you might save. There's no shame in recognizing your limits.
When your DIY repair doesn't solve the problem, that's definitely time to call in reinforcements. Sometimes what looks like a simple board replacement is actually a more complex issue involving multiple components.
Finding the right technician matters. Look for professionals with NATE (North American Technician Excellence) certification. These folks have proven their knowledge through rigorous testing.
Check online reviews to get a sense of how the company treats customers. Are they punctual? Do they explain things clearly? Do they clean up after themselves? These details matter when someone's working in your home.
Always ask for written estimates that break down parts and labor costs before any work begins. A reputable company will be transparent about pricing and won't surprise you with hidden fees.
At Patriot Heating & AC, our certified technicians bring both the expertise and the peace of mind you need when your furnace isn't cooperating. We believe in explaining what we're doing and why, so you never feel left in the dark about your own heating system.
Frequently Asked Questions about Furnace Control Boards
When homeowners find their furnace isn't working properly, questions start flying. We've been helping Kansas families with their heating systems for years, and these are the questions we hear most often about control boards.
How long does a furnace circuit board last?
Your furnace control board should keep your home cozy for 10 to 15 years on average. Think of it like the computer in your car - it's built to last, but it won't run forever.
Several factors can either extend or shorten your board's lifespan. Heavy usage during particularly brutal Kansas winters can wear components faster. If your furnace runs constantly because it's undersized or your home isn't well-insulated, the board works overtime.
Regular maintenance makes a huge difference in how long your control board lasts. When you keep up with filter changes and annual tune-ups, you're not just maintaining your furnace - you're protecting that expensive little brain inside. Clean filters mean your blower motor doesn't have to work as hard, which reduces stress on the control board's relays.
Power quality in your neighborhood also plays a role. Frequent power surges from storms or grid issues can gradually damage sensitive electronic components. A whole-house surge protector is like insurance for your furnace and all your other appliances.
The bottom line? Take care of your furnace, and it'll take care of you. Our guide on How to Prepare Your Furnace for Winter has practical tips to help extend your control board's life.
Can a bad circuit board cause the fan to run all the time?
Absolutely! This is actually one of the most telltale signs that your control board is on its way out. If your blower fan sounds like it's training for a marathon - running constantly whether you want heat or not - you're likely dealing with a stuck relay switch.
Here's what's happening: Your control board has small electromechanical switches called relays that act like on/off switches for different components. The blower motor relay is responsible for telling your fan when to start and stop. When this relay gets stuck in the "on" position, it keeps sending power to your blower motor 24/7.
This isn't just annoying - it's also driving up your electric bill and wearing out your blower motor prematurely. The relay might stick due to age, moisture, or just normal wear and tear. Unfortunately, you can't just unstick it with a gentle tap (though we've all been tempted to try!).
When this happens, a furnace circuit board repair or replacement is your best bet. The good news is that once you install a new board, your fan will go back to its normal, well-behaved schedule.
Does a faulty circuit board mean I need a new furnace?
Not at all! This is probably the biggest misconception we encounter. A faulty control board is just one component of your heating system - think of it like replacing the motherboard in your computer rather than buying a whole new computer.
Board replacement is much cheaper than a new furnace installation. We're talking about replacing a part, not your entire heating system. Even with professional installation, you're looking at a fraction of what a new furnace would cost.
However, there are times when a failing control board might be a sign to consider your options more carefully. If your furnace is 15 to 20 years old and has been giving you trouble in other areas, the control board failure might be the universe's way of telling you it's time to upgrade.
Consider the overall condition of your system. Are you calling for repairs every winter? Is your energy bill climbing even though your usage hasn't changed? Has your furnace been making strange noises or struggling to keep up with your heating needs?
In these cases, while you absolutely can replace just the control board, it might make more financial sense to invest in a new, more efficient system. We can help you evaluate whether repair or replacement makes the most sense for your situation. Check out our options for Furnace Installation in Overland Park, KS if you're curious about what a new system might offer.
The key is making an informed decision based on your furnace's age, repair history, and your long-term comfort goals.
Stay Warm and Safe with Expert Furnace Repair
Your furnace control board is a small but critical component—the brain that keeps your home warm. We hope this guide helps you understand your furnace's issues and decide if a DIY furnace circuit board repair is right for you.
The key takeaway? Accurate diagnosis is absolutely essential before you start any repair work. Those diagnostic LED lights and error codes are your furnace's way of talking to you – listen to what it's saying! While DIY replacement is definitely possible for handy homeowners who are comfortable with basic electrical work, there's no shame in calling a professional when you're in doubt.
Your safety and your family's safety always come first. Working with electricity and gas appliances carries real risks, and a few hundred dollars in professional service is a small price to pay for peace of mind.
Here's something that can't be stressed enough: regular maintenance is your best friend. Just like changing the oil in your car, keeping your furnace clean and well-maintained can prevent many problems before they start. Clean filters, annual inspections, and addressing small issues early can extend the life of your control board and every other component in your system.
When winter hits Kansas, the last thing you want is to wake up to a cold house. That's where we come in. At Patriot Heating & AC, our certified technicians have seen it all – from simple furnace circuit board repairs to complex diagnostic puzzles that would stump most homeowners. We pride ourselves on providing expert, honest service to families throughout the Kansas City metro area.
Whether you're dealing with a control board that's given up the ghost, need help interpreting those blinking diagnostic codes, or just want the peace of mind that comes with a professional tune-up, we're here to help. Our team understands that your home's comfort can't wait, which is why we offer prompt, reliable service when you need it most.
Don't let a faulty furnace turn your cozy home into an icebox. Contact us for furnace repair in Overland Park, KS and let our experienced technicians take the worry out of your winter heating needs.
